Knowledge BaseA soft power reset circuit
Last modified by Victor Zhang on 03:56, 28/10/2020
Background: It might be needed to have a reset pulse with boot code to detect reset and hold

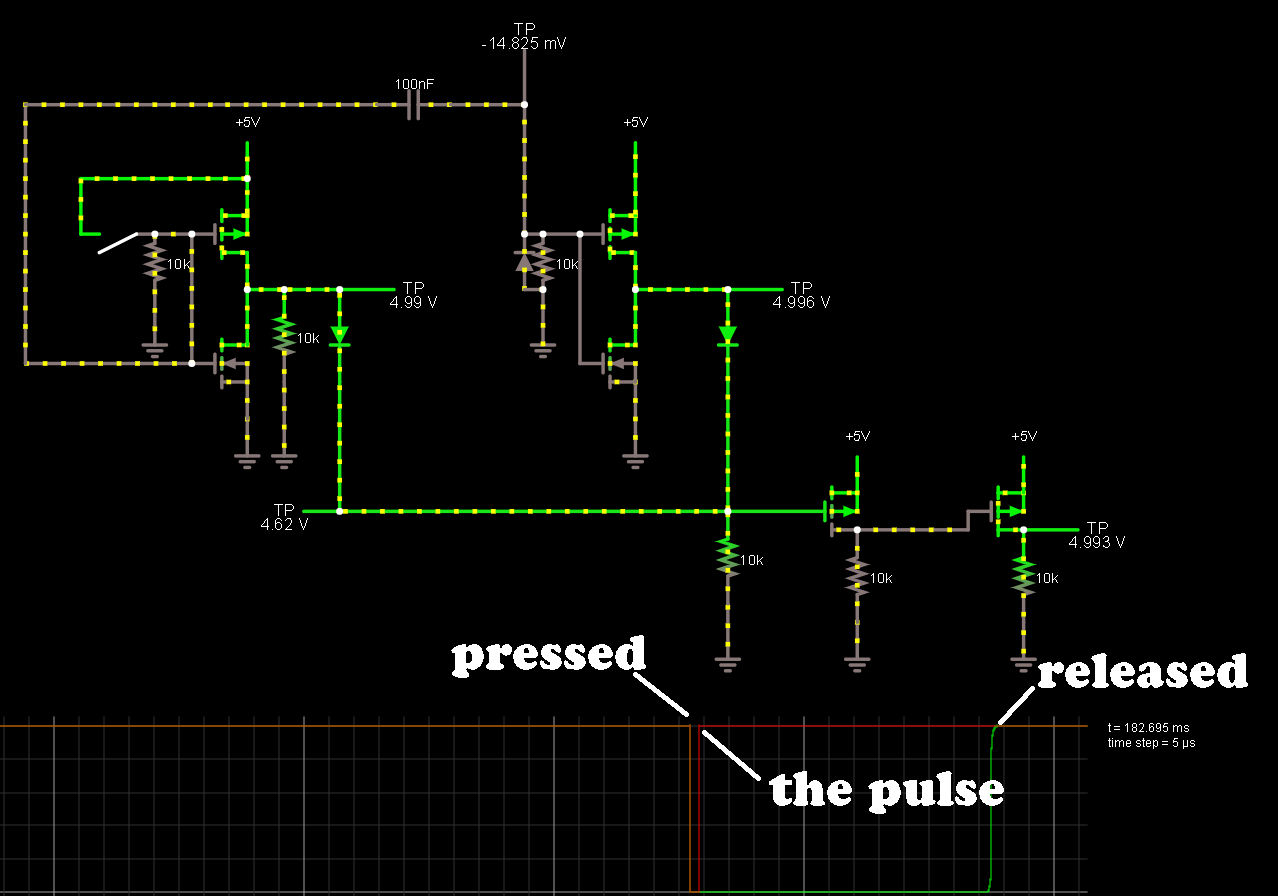

The circuit uses 4 pMOS and 2 nMOS
The idea is to use or gate and capacitor charging one pin to release the second input for the output to be a low pulse
The 2 pMOS flip on the bottom right side might not be needed, as 4.65v and 4.93v will be both counted as high, so not that important.
